| for Both Belt Sections"A"(4L) and "O"(3L) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|

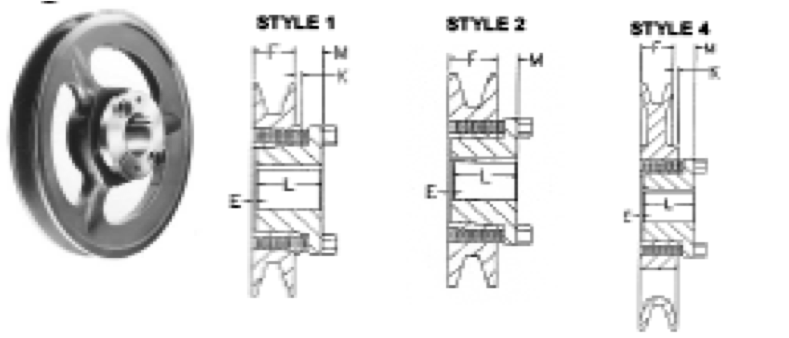

| O.D INCHES | D.D "A"BELT INCHES | D.D "O"BELT INCHES | PART NUMBER | Alternate Part Number | Style | Weight(Lbs) | DIMENSION- INCHES | ||||
| E | F | K | L | M | |||||||
| 3.05 | 2.8 | 2.5 | - | AK30H | 1 | 1.1 | 3/8 | 3/4 | 7/16 | 1-1/4 | 7/8 |
| 3.25 | 3.0 | 2.7 | - | AK32H | 1 | 1.2 | 3/8 | 3/4 | 7/16 | 1-1/4 | 7/8 |
| 3.45 | 3.2 | 2.9 | - | AK34H | 2 | 1 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 3.75 | 3.5 | 3.2 | - | AK39H | 2 | 1.4 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 3.95 | 3.7 | 3.4 | AH40 | AK41H | 1 | 1.2 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 4.25 | 4.0 | 3.7 | AH43 | AK44H | 1 | 2 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 4.45 | 4.2 | 3.9 | AH45 | AK46H | 1 | 2.1 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 4.75 | 4.5 | 4.2 | AH48 | AK49H | 1 | 2.6 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 4.95 | 4.7 | 4.4 | AH50 | AK51H | 1 | 2.8 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 5.25 | 5.0 | 4.7 | AH53 | AK54H | 1 | 3.4 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 5.45 | 5.2 | 4.9 | AH55 | AK56H | 4 | 2 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 5.95 | 5.7 | 5.4 | AH60 | AK61H | 4 | 2.7 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 6.25 | 6.0 | 5.7 | AH63 | AK64H | 4 | 2.7 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 6.45 | 6.2 | 5.9 | AH65 | AK66H | 4 | 2.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 6.75 | 6.5 | 6.2 | AH68 | AK69H | 4 | 2.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 6.95 | 6.7 | 6.6 | AH70 | AK71H | 4 | 2.5 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 7.25 | 7.0 | 6.7 | AH73 | AK74H | 4 | 2.8 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 7.75 | 7.5 | 7.2 | AH78 | AK79H | 4 | 3.2 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 7.95 | 7.7 | 7.4 | AH80 | - | 4 | 2.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 8.25 | 8.0 | 7.7 | AH83 | AK84H | 4 | 3.4 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 8.75 | 8.5 | 8.2 | AH88 | AK89H | 4 | 3.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 8.95 | 8.7 | 8.4 | AH90 | - | 4 | 2.8 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 9.25 | 9.0 | 8.7 | AH93 | AK94H | 4 | 3.3 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 9.95 | 9.7 | 9.4 | AH100 | - | 4 | 4 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 10.25 | 10.0 | 9.7 | AH103 | AK104H | 4 | 4.3 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 10.95 | 10.7 | 10.4 | AH110 | - | 4 | 3.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 11.25 | 11.0 | 10.7 | AH113 | AK114H | 4 | 5.8 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 11.95 | 11.7 | 11.4 | AH120 | - | 4 | 5.9 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 12.25 | 12.0 | 11.7 | AH123 | AK124H | 4 | 6.3 | 1/16 | 3/4 | 1/8 | 1-1/4 | 9/16 |
| 12.95 | 12.7 | 12.4 | AH130 | - | 4 | 7.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 13.25 | 13.0 | 12.7 | AH133 | AK134H | 4 | 6.7 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 13.95 | 13.7 | 13.4 | AH140 | - | 4 | 7.6 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 14.25 | 14.0 | 13.7 | AH143 | AK144H | 4 | 8.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 14.95 | 14.7 | 14.4 | AH150 | - | 4 | 9.5 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 15.25 | 15.0 | 14.7 | AH153 | AK154H | 4 | 10.1 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 18.25 | 18.0 | 17.7 | AH183 | AK184H | 4 | 12.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| for Both Belt Sections"B"(5L) and "A"(4L) | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| O.D INCHES | D.D "A"BELT INCHES | D.D "O"BELT INCHES | PART NUMBER | Alternate Part Number | Style | Weight(Lbs) | DIMENSION- INCHES | ||||
| E | F | K | L | M | |||||||
| 3.15 | 2.8 | 2.4 | BH32 | BK30H | 1 | 0.6 | 15/16 | 7/8 | 7/8 | 1-1/4 | 1-5/16 |
| 3.35 | 3 | 2.6 | BH34 | BK32H | 1 | 0.8 | 15/16 | 7/8 | 7/8 | 1-1/4 | 1-5/16 |
| 3.55 | 3.2 | 2.8 | BH36 | BK34H | 1 | 1 | 15/16 | 7/8 | 7/16 | 1-1/4 | 1-5/16 |
| 3.75 | 3.4 | 3 | BH38 | BK36H | 2 | 1.4 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 3.95 | 3.6 | 3.2 | BH40 | BK40H | 2 | 1.7 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.15 | 3.8 | 3.4 | BH42 | - | 2 | 2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.25 | 3.9 | 3.5 | - | BK45H | 2 | 1.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.35 | 4 | 3.6 | BH44 | - | 2 | 2.5 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.45 | 4.1 | 3.7 | - | BK47H | 2 | 2.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.55 | 4.2 | 3.8 | BH46 | - | 2 | 2.7 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.75 | 4.4 | 4 | BH48 | BK50H | 2 | 2.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 4.95 | 4.6 | 4.2 | BH50 | BK52H | 2 | 3.1 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.15 | 4.8 | 4.4 | BH52 | - | 2 | 3.7 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.25 | 4.9 | 4.5 | BH53 | BK55H | 2 | 3.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.35 | 5 | 4.6 | BH54 | - | 4 | 1.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.55 | 5.2 | 4.8 | BH56 | - | 4 | 2.4 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.75 | 5.4 | 5 | BH58 | BK60H | 4 | 2.6 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 5.95 | 5.6 | 5.2 | BH60 | - | 4 | 2.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.15 | 5.8 | 5.4 | BH62 | - | 4 | 2.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.25 | 5.9 | 5.5 | - | BK65H | 2 | 2.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.35 | 6 | 5.6 | BH64 | - | 4 | 2.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.55 | 6.2 | 5.8 | BH66 | - | 4 | 3.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.75 | 6.4 | 6 | BH68 | BK70H | 4 | 3.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 6.95 | 6.6 | 6.2 | BH70 | BK72H | 4 | 3.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 7.15 | 6.8 | 6.4 | BH72 | - | 4 | 3.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 7.25 | 6.9 | 6.5 | - | BK75H | 4 | 3.3 | 1/8 | 7/8 | 0 | 1-1/4 | 1/2 |
| 7.75 | 7.4 | 7 | BH78 | BK80H | 4 | 3.2 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 8.25 | 7.9 | 7.5 | BH83 | BK85H | 4 | 3.4 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 8.75 | 8.4 | 8 | BH88 | BK90H | 4 | 4.4 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 8.95 | 8.6 | 8.2 | BH90 | - | 4 | 3.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 9.25 | 8.9 | 8.5 | - | BK95H | 4 | 5 | 1/8 | 7/8 | 0 | 1-1/4 | 1/2 |
| 9.75 | 9.4 | 9 | BH98 | BK100H | 4 | 4.7 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 10.75 | 10.4 | 10 | BH108 | BK110H | 4 | 6.3 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 11.35 | 11 | 10.6 | BH114 | - | 4 | 5.1 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 11.75 | 11.4 | 11 | BH118 | BK120H | 4 | 6.8 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 12.75 | 12.4 | 12 | BH128 | BK130H | 4 | 6.9 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 13.95 | 13.6 | 13.2 | BH140 | - | 4 | 6.1 | 1/16 | 7/8 | 0 | 1-1/4 | 7/16 |
| 15.75 | 15.4 | 15 | BH158 | BK160H | 4 | 11.7 | 3/16 | 1.0 | 0 | 1-1/4 | 7/16 |
| 18.75 | 18.4 | 18 | BH188 | BK190H | 4 | 13.7 | 3/16 | 1.0 | 0 | 1-1/4 | 7/16 |
