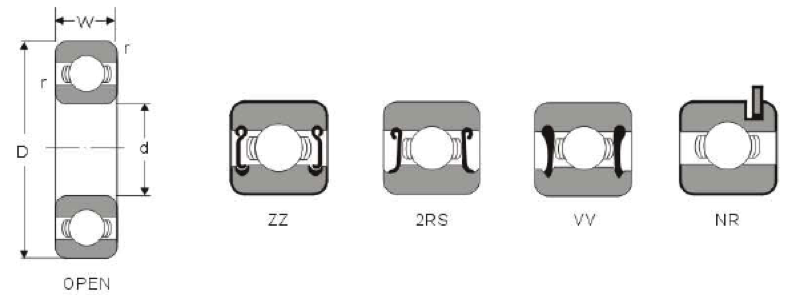

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | |||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | ||
| 6000 | 10 | .3937 | 26 | 1.0236 | 8 | .3150 | 0.5 | .020 | 1030 | 440 | .042 |
| 6001 | 12 | .4724 | 28 | 1.1024 | 8 | .3150 | 0.5 | .020 | 1150 | 540 | .049 |
| 6002 | 15 | .5906 | 32 | 1.2598 | 9 | .3543 | 0.5 | .020 | 1260 | 635 | .066 |
| 6003 | 17 | .6693 | 35 | 1.3780 | 10 | .3937 | 0.5 | .020 | 1530 | 755 | .086 |
| 6004 | 20 | .7874 | 42 | 1.6535 | 12 | .4724 | 1.0 | .039 | 2110 | 1140 | .152 |
| 60/22 | 22 | .8661 | 44 | 1.7323 | 12 | .4724 | 1.0 | .039 | 2110 | 1150 | .163 |
| 6005 | 25 | .9843 | 47 | 1.8504 | 12 | .4724 | 1.0 | .039 | 2260 | 1320 | .176 |
| 60/28 | 28 | 1.1024 | 52 | .2.0472 | 12 | .4724 | 1.0 | .039 | 2800 | 1660 | .216 |
| 6006 | 30 | 1.1811 | 55 | 2.1654 | 13 | .5118 | 1.5 | .059 | 2970 | 1860 | .256 |
| 60/32 | 32 | 1.2598 | 58 | 2.2835 | 13 | .5118 | 1.5 | .059 | 3400 | 2050 | .284 |
| 6007 | 35 | 1.3780 | 62 | 2.4409 | 14 | .5512 | 1.5 | .059 | 3600 | 2310 | .342 |
| 6008 | 40 | 1.5748 | 68 | 2.6772 | 15 | .5906 | 1.5 | .059 | 3750 | 2590 | .423 |
| 6009 | 45 | 1.7717 | 75 | 2.9528 | 16 | .6299 | 1.5 | .059 | 4700 | 3400 | .540 |
| 6010 | 50 | 1.9685 | 80 | 3.1496 | 16 | .6299 | 1.5 | .059 | 4900 | 3750 | .575 |
| 6011 | 55 | 2.1654 | 90 | 3.5433 | 18 | .7087 | 1.5 | .059 | 6350 | 4800 | .849 |
| 6012 | 60 | 2.3622 | 95 | 3.7404 | 18 | .7087 | 2.0 | .079 | 6600 | 5200 | .915 |
| 6013 | 65 | 2.5591 | 100 | 3.9370 | 18 | .7087 | 2.0 | .079 | 6850 | 5650 | .959 |
| 6014 | 70 | 2.7559 | 110 | 4.3307 | 20 | .7874 | 2.0 | .079 | 8550 | 6950 | 1.33 |
| 6015 | 75 | 2.9528 | 115 | 4.5276 | 20 | .7874 | 2.0 | .079 | 8900 | 7550 | 1.41 |
| 6016 | 80 | 3.1496 | 125 | 4.9213 | 22 | .8661 | 2.0 | .079 | 10700 | 8950 | 1.87 |
| 6017 | 85 | 3.3465 | 130 | 5.1181 | 22 | .8661 | 2 | .079 | 11100 | 9700 | 1.96 |
| 6018 | 90 | 3.5433 | 140 | 5.5118 | 24 | .9449 | 2.5 | .098 | 13100 | 11200 | 2.56 |
| 6019 | 95 | 3.7402 | 145 | 5.7087 | 24 | .9449 | 2.5 | .098 | 13600 | 12100 | 2.67 |
| 6020 | 100 | 3.937 | 150 | 5.9055 | 24 | .9449 | 2.5 | .098 | 13500 | 12200 | 2.76 |
| 6021 | 105 | 4.1339 | 160 | 6.2992 | 26 | 1.0236 | 3.0 | .118 | 16300 | 14800 | 3.51 |
| 6022 | 110 | 4.3307 | 170 | 6.6929 | 28 | 1.1024 | 3.0 | .118 | 18400 | 16400 | 4.32 |
| 6024 | 120 | 4.7244 | 180 | 7.0866 | 28 | 1.1024 | 3.0 | .118 | 19100 | 17800 | 4.56 |
| 6026 | 130 | 5.1181 | 200 | 7.8740 | 33 | 1.2992 | 3.0 | .118 | 23900 | 22700 | 6.97 |
| 6028 | 140 | 5.5118 | 210 | 8.2677 | 33 | 1.2992 | 3.0 | .118 | 24700 | 24400 | 7.39 |
| 6030 | 150 | 5.9055 | 225 | 8.8583 | 35 | 1.3780 | 3.5 | .138 | 28300 | 28300 | 8.99 |
| 6032 | 160 | 6.2992 | 240 | 9.4488 | 38 | 1.4961 | 3.5 | .138 | 32000 | 32500 | 11.10 |
| 6034 | 170 | 6.6929 | 260 | 0.2362 | 42 | 1.6535 | 3.5 | .138 | 38000 | 38500 | 17.50 |
| 6036 | 180 | 7.0866 | 280 | 1.0236 | 46 | 1.8110 | 3.5 | .138 | 42500 | 44500 | 22.70 |
| 6038 | 190 | 7.4803 | 290 | 11.4173 | 46 | 1.8110 | 3.5 | .138 | 44000 | 48500 | 23.80 |
| 6040 | 200 | 7.874 | 310 | 12.2047 | 51 | 2.0079 | 3.5 | .138 | 49000 | 54500 | 30.60 |
