SPECIAL

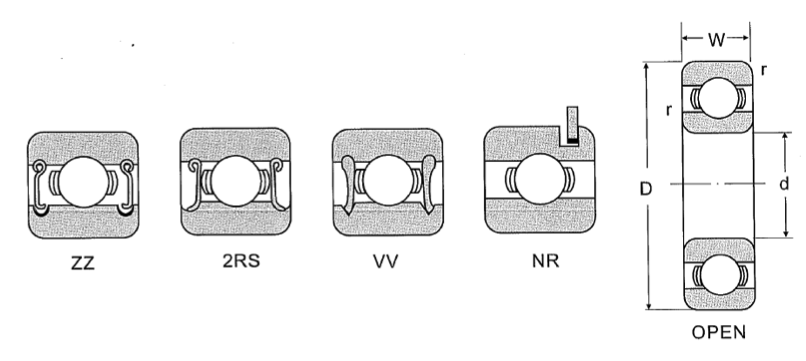

Bearing No. Bore d Outer Diameter D Width W Radius r Basic Load Rating lbs   Limiting Speed rpm Weight lbs
  mm mm mm mm Dynamic Cr Static Cor
B8-74D 8 22 11 0.6 728 306 36.000 0.05
B8-79D 8 23 11 0.6 739 334 32.000 0.05
B8-23D 8 23 14 0.6 783 380 32.000 0.07
B8-85D 8 23 14 0.6 783 380 32.000 0.07
B10-46D 10 23 11 0.3 735 418 23.000 0.04
6000-TT 10 26 8 0.3 1.021 436 23.000 0.04
62000 10 26 10 0.3 1.021 436 23.000 0.05
B10-50D 10 27 11 0.6 1.054 447 23.000 0.06
B10-27D 10 27 14 0.6 1.054 447 23.000 0.07
B214-2RS 12 35 18 1.0 1.760 768 20.000 0.13
B366-2RS 15 32 11 0.6 1.256 583 18.000 0.08
6202-TT 15 35 11 0.6 1.703 693 18.000 0.10
B15-69 15 35 13 0.6 1.703 693 18.000 0.12
B279-2RS 15 35 13 0.6 1.703 693 18.000 0.12
B348-2RS 15 38 19 1.1 1.815 895 18.000 0.20
B319-2RS 15 43 13 0.6 2.466 1.001 16.000 0.20
B336-2RS 15 46 14 0.6 2.6 1.054 15.000 0.21
B15-86D 15 47 14 1.0 3.364 1.12 14.000 0.23
B15-83D 15 47 18 1.0 3.63 1.296 14.000 0.24
B382-2RS 15 52 16 1.1 4.114 1.848 14.000 0.25
B17-107D 17 47 18 1.1 3.364 1.877 12.000 0.34
B17-47D 17 47 24 1.1 3.364 1.877 12.000 0.39
B333-2RS 17 52 16 1.1 4.598 2.2 13.000 0.42
B17-99D 17 52 17 1.1 4.598 2.2 13.000 0.45
B17-116D 17 52 18 1.1 4.598 2.2 13.000 0.53
6904DW 18.8 37 9 0.6 1.465 770 17.000 0.08
62304(20) 20 52 21 1.1 5.025 2.6 13.000 0.46
62322 20 56 21 1.1 4.127 2.075 13.000 0.51
B25-147 25 62 19 1.1 4.62 2.211 8.000 0.60
