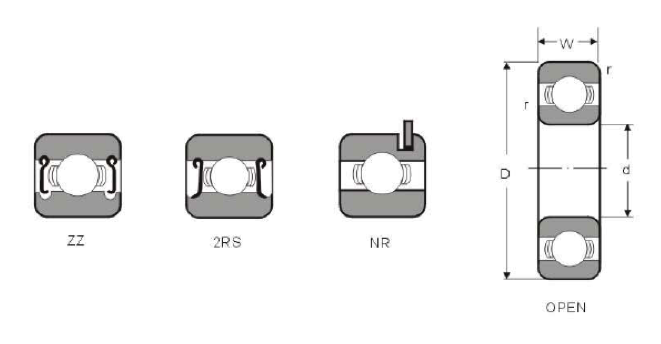

| Bearing No. | Bore d +.005/-.000 | Outer Diameter D +.000/-Minus | Width W +.005 | Basic Dynamic Load lbs | ||||
|---|---|---|---|---|---|---|---|---|
| fraction | inch | fraction | inch | minus | fraction | inch | ||
| 3001 | 3/16 | .1875 | 11/16 | .6875 | -.0005 | 5/16* | .3125* | 115 |
| 3002 | 1/4 | .2500 | 11/16 | .6875 | -.0005 | 5/16* | .3125* | 115 |
| 3003 | 5/16 | .3125 | 7/8 | .8750 | -.0005 | 11/32** | .3437** | 173 |
| 3004 | 3/8 | .3750 | 7/8 | .8750 | -.0005 | 11/32** | .3437** | 173 |
| 3005 | 5/16 | .3125 | 29/32 | .9062 | -.0005 | 5/16 | .3125 | 173 |
| 3006 | 3/8 | .3750 | 29/32 | .9062 | -.0005 | 5/16 | .3125 | 173 |
| 3007 | 7/16 | .4375 | 29/32 | .9062 | -.0005 | 5/16 | .3125 | 140 |
| 3014 | 3/8 | .3750 | 1-1/8 | 1.1250 | -.0005 | 3/8 | .3750 | 266 |
| 3015 | 7/16 | .4375 | 1-1/8 | 1.1250 | -.0005 | 3/8 | .3750 | 266 |
| 3016 | 1/2 | .5000 | 1-1/8 | 1.1250 | -.0005 | 3/8 | .3750 | 266 |
| 3020 | 7/16 | .4375 | 1-3/8 | 1.3750 | -.0005 | 7/16 | .4375 | 352 |
| 3021 | 1/2 | .5000 | 1-3/8 | 1.3750 | -.0005 | 7/16 | .4375 | 352 |
| 3022 | 9/16 | .5625 | 1-3/8 | 1.3750 | -.0005 | 7/16 | .4375 | 352 |
| 3023 | 5/8 | .6250 | 1-3/8 | 1.3750 | -.0005 | 7/16 | .4375 | 352 |
| 3028 | 5/8 | .6250 | 1-5/8 | 1.6250 | -.0005 | 1/2 | .5000 | 450 |
| 3030 | 3/4 | .7500 | 1-5/8 | 1.6250 | -.0005 | 1/2 | .5000 | 450 |
| 3033 | 5/8 | .6250 | 1-3/4 | 1.7500 | -.0005 | 1/2 | .5000 | 450 |
| 3035 | 3/4 | .7500 | 1-3/4 | 1.7500 | -.0005 | 1/2 | .5000 | 450 |
| 3038 | 3/4 | .7500 | 2 | 2.0000 | -.0006 | 9/16 | .5625 | 672 |
| 3040 | 7/8 | .8750 | 2 | 2.0000 | -.0006 | 9/16 | .5625 | 672 |
| 3041 | 1 | 1.0000 | 2 | 2.0000 | -.0006 | 9/16 | .5625 | 672 |
