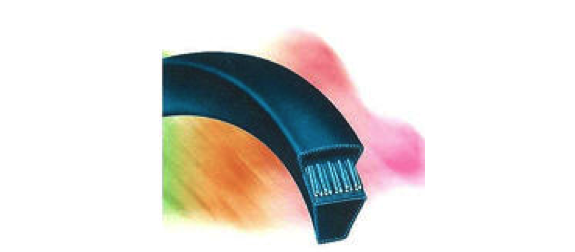

High Power Wedged V-belts

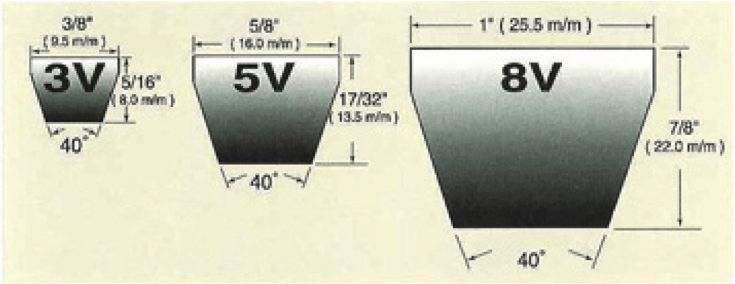

Section Available Range
3V 26"x175"
5V 50"x480"
8V 100"x480"
STANDARD SIZE LIST
Parts No. Belt O.C(in) Parts No. Belt O.C(in) Parts No. Belt O.C(in)
3V 250 25 5V 500 50 8V 1000 100
3V 260 26 5V 530 53 8V 1030 103
3V 280 28 5V 560 56 8V 1060 106
3V 300 30 5V 600 60 8V 1120 112
3V 310 31 5V 630 63 8V 1180 118
3V 330 33 5V 670 67 8V 1250 125
3V 350 35 5V 710 71 8V 1280 128
3V 370 37 5V 750 75 8V 1320 132
3V 400 40 5V 800 80 8V 1400 140
3V 420 42 5V 850 85 8V 1450 145
3V 450 45 5V 900 90 8V 1500 150
3V 470 47 5V 950 95 8V 1560 156
3V 500 50 5V 1000 100 8V 1600 160
3V 530 53 5V 1060 106 8V 1650 165
3V 560 56 5V 1120 112 8V 1700 170
3V 600 60 5V 1180 118 8V 1750 175
3V 630 63 5V 1250 125 8V 1800 180
3V 670 67 5V 1320 132 8V 1900 190
3V 700 70 5V 1400 140 8V 2000 200
3V 730 73 5V 1450 145 8V 2120 212
3V 780 78 5V 1500 150 8V 2240 224
3V 800 80 5V 1600 160 8V 2360 236
3V 850 85 5V 1700 170 8V 2500 250
3V 880 88 5V 1800 180 8V 2650 265
3V 900 90 5V 1900 190 8V 2800 280
3V 950 95 5V 2000 200 8V 3000 300
3V 1000 100 5V 2120 212 8V 3150 315
3V 1060 106 5V 2240 224 8V 3350 335
3V 1120 112 5V 2360 236 8V 3550 355
3V 1180 118 5V 2500 250 8V 3750 375
3V 1250 125 5V 2650 265 8V 3800 380
3V 1320 132 5V 2800 280 8V 3850 385
3V 1400 140 5V 3000 300 8V 4000 400
3V 1500 150 5V 3150 315 8V 4250 425
3V 1600 160 5V 3350 335 8V 4500 450
3V 1700 170 5V 3550 355 8V 4750 475
