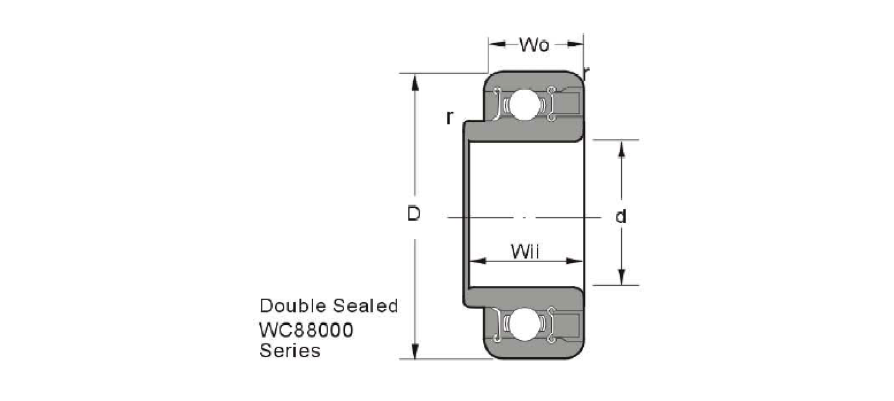

| Bearing No. | Bore d | Outer Diameter D | Width | Radius r | Basic Load Rating lbs | Weight lbs | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | Wo | Wii | mm | inch | Dynamic Cr | Static Cor | ||||
| mm | inch | mm | inch | ||||||||||
| WC88006 | 6 | .2362 | 24 | .9449 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 747 | 317 | .055 |
| WC88007 | 7 | .2756 | 24 | .9449 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 747 | 317 | .051 |
| WC88008 | 8 | .3150 | 24 | .9449 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 747 | 317 | .048 |
| WC88009 | 9 | .3543 | 30 | 1.1811 | 12.700 | .5000 | 16.401 | .6457 | 0.6 | .025 | 1047 | 465 | .105 |
| WC88011 | 11 | .4331 | 32 | 1.2598 | 12.700 | .5000 | 15.400 | .6063 | 0.6 | .025 | 1375 | 626 | .104 |
| WC88013 | 13 | .5118 | 32 | 1.2598 | 12.700 | .5000 | 15.400 | .6063 | 0.6 | .025 | 1375 | 626 | .095 |
| WC88014 | 14 | .5512 | 35 | 1.3780 | 12.700 | .5000 | 14.399 | .5669 | 0.6 | .025 | 1525 | 747 | .125 |
| WC88016 | 16 | .6299 | 35 | 1.3780 | 12.700 | .5000 | 14.399 | .5669 | 0.6 | .025 | 1525 | 747 | .114 |
| WC88026 | 26 | 1.0236 | 52 | 2.0472 | 15.875 | .6250 | 16.749 | .6594 | 1 | .04 | 3150 | 1785 | .294 |
| WC88035 | 5 | .1969 | 19 | .748 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 524 | 198 | .026 |
| WC88036 | 6 | .2362 | 19 | .748 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 524 | 198 | .027 |
| WC88037 | 7 | .2756 | 22 | .8661 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 740 | 306 | .043 |
| WC88038 | 8 | .3150 | 22 | .8661 | 10.319 | .4063 | 12.624 | .4970 | 0.3 | .012 | 740 | 306 | .040 |
| WC88039 | 9 | .3543 | 26 | 1.0236 | 10.319 | .4063 | 12.624 | .4970 | 0.6 | .025 | 1025 | 438 | .057 |
| WC88500 | 10 | .3937 | 30 | 1.1811 | 12.700 | .5000 | 16.401 | .6457 | 0.6 | .025 | 1047 | 465 | .091 |
| WC88501 | 12 | .4724 | 32 | 1.2598 | 12.700 | .5000 | 15.400 | .6063 | 0.6 | .025 | 1375 | 626 | .099 |
| WC88502 | 15 | .5906 | 35 | 1.3780 | 12.700 | .5000 | 14.399 | .5669 | 0.6 | .025 | 1525 | 747 | .119 |
| WC88503 | 17 | .6693 | 40 | 1.5748 | 14.288 | .5625 | 16.601 | .5636 | 0.6 | .025 | 2149 | 1075 | .166 |
| WC88504 | 20 | .7874 | 47 | 1.8504 | 15.875 | .6250 | 17.750 | .6988 | 1 | .04 | 2885 | 1494 | .259 |
| WC88505 | 25 | .9843 | 52 | 2.0472 | 15.875 | .6250 | 16.749 | .6594 | 1 | .04 | 3150 | 1785 | .304 |
| WC88506 | 30 | 1.1811 | 62 | 2.4409 | 20 | .7874 | 24 | .9449 | 1 | .04 | 3363 | 2256 | .571 |
| WC88507 | 35 | 1.3780 | 72 | 2.8346 | 21 | .8268 | 25 | .9843 | 1 | .04 | 2120 | 1330 | .765 |
| WC88508 | 40 | 1.5748 | 80 | 3.1496 | 24 | .9449 | 27 | 1.0630 | 1 | .04 | 2960 | 1820 | 1.180 |
| WC88509 | 45 | 1.7717 | 85 | 3.3465 | 24 | .9449 | 27 | 1.0630 | 1 | .04 | 3300 | 2050 | 1.220 |
| WC88510 | 50 | 1.9685 | 90 | 3.5433 | 26 | 1.0236 | 30 | 1.1811 | 1 | .04 | 3560 | 2350 | 1.400 |
| WC88511 | 55 | 2.1654 | 100 | 3.9370 | 27 | 1.0630 | 31 | 1.2205 | 1.5 | .06 | 4390 | 2970 | 1.720 |
| WC88603 | 17 | .6693 | 47 | 1.8504 | 16 | .6299 | 18 | .7087 | 1.5 | .06 | 2885 | 1494 | .259 |
| WC88604 | 20 | .7874 | 52 | 2.0472 | 19 | .7480 | 23 | .9055 | 1.5 | .06 | 3150 | 1785 | .388 |
| WC88605 | 25 | .9483 | 62 | 2.4409 | 21 | .8268 | 25 | .9843 | 1.5 | .06 | 3300 | 2050 | .600 |
