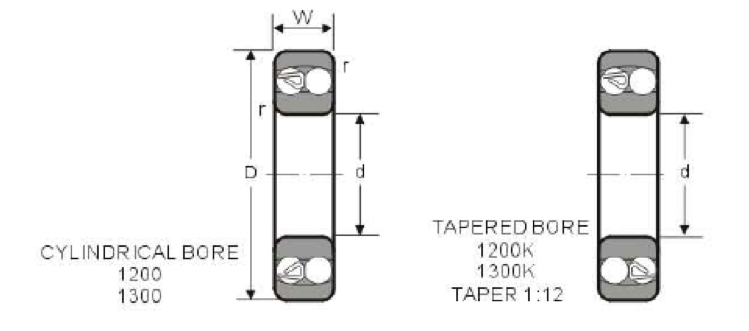

| Metric Series 1200,1200K,1300,1300K | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | ||||||
| mm | inch | mm | inch | mm | inch | mm | inch | Dynamic Cr | Static Cor | |||
| 1200 | 1200K | 10 | 0.3937 | 30 | 1.1811 | 9 | 0.3543 | 1 | 0.039 | 1230 | 268 | 0.075 |
| 1201 | 1201K | 12 | 0.4724 | 32 | 1.2598 | 10 | 0.3937 | 1 | 0.039 | 1260 | 286 | 0.088 |
| 1202 | 1202K | 15 | 0.5906 | 35 | 1.378 | 11 | 0.4331 | 1 | 0.039 | 1680 | 395 | 0.108 |
| 1203 | 1203K | 17 | 0.6693 | 40 | 1.5748 | 12 | 0.4724 | 1 | 0.039 | 1770 | 450 | 0.161 |
| 1204 | 1204K | 20 | 0.7874 | 47 | 1.8504 | 14 | 0.5512 | 1.5 | 0.059 | 2230 | 585 | 0.265 |
| 1205 | 1205K | 25 | 0.9843 | 52 | 2.0472 | 15 | 0.5906 | 1.5 | 0.059 | 2720 | 740 | 0.311 |
| 1206 | 1206K | 30 | 1.1811 | 62 | 2.4409 | 16 | 0.6299 | 1.5 | 0.59 | 3500 | 1050 | 0.485 |
| 1207 | 1207K | 35 | 1.378 | 72 | 2.8346 | 17 | 0.6693 | 2 | 0.079 | 3550 | 1150 | 0.712 |
| 1208 | 1208K | 40 | 1.5748 | 80 | 3.1496 | 18 | 0.7087 | 2 | 0.079 | 4350 | 1470 | 0.919 |
| 1209 | 1209K | 45 | 1.7717 | 85 | 3.3465 | 19 | 0.748 | 2 | 0.079 | 4900 | 1650 | 1.03 |
| 1210 | 1210K | 50 | 1.9685 | 80 | 3.5433 | 20 | 0.7874 | 2 | 0.079 | 5100 | 1820 | 1.13 |
| 1211 | 1211K | 55 | 2.1654 | 100 | 3.937 | 21 | 0.8268 | 2.5 | 0.098 | 6000 | 2250 | 1.55 |
| 1212 | 1212K | 60 | 2.3622 | 110 | 4.3307 | 22 | 0.8661 | 2.5 | 0.098 | 6800 | 2590 | 1.98 |
| 1213 | 1213K | 65 | 2.5591 | 120 | 4.7244 | 23 | 0.9055 | 2.5 | 0.098 | 6950 | 2820 | 2.54 |
| 1214 | 1214K | 70 | 2.7559 | 125 | 4.9213 | 24 | 0.9449 | 2.5 | 0.098 | 7800 | 3100 | 2.78 |
| 1215 | 1215K | 75 | 2.9528 | 130 | 5.1181 | 25 | 0.9843 | 2.5 | 0.098 | 8750 | 3550 | 3 |
| 1216 | 1216K | 80 | 3.1496 | 140 | 5.5118 | 26 | 1.0236 | 3 | 0.118 | 8950 | 3800 | 3.68 |
| 1217 | 1217K | 85 | 3.3465 | 150 | 5.9055 | 28 | 1.1024 | 3 | 0.118 | 11000 | 4650 | 4.56 |
| 1218 | 1218K | 90 | 3.5433 | 160 | 6.2992 | 30 | 1.1811 | 3 | 0.118 | 12800 | 5300 | 5.56 |
| 1219 | 1219K | 95 | 3.7402 | 170 | 6.6929 | 32 | 1.2598 | 3.5 | 0.138 | 14300 | 6100 | 6.83 |
| 1220 | 1220K | 100 | 3.937 | 180 | 7.0866 | 34 | 1.3386 | 3.5 | 0.138 | 15500 | 6700 | 8.16 |
| 1300 | 1300K | 10 | 0.3937 | 35 | 1.378 | 11 | 0.4331 | 0.6 | 0.024 | 1630 | 3650 | 0.128 |
| 1301 | 1301K | 12 | 0.4724 | 37 | 1.4567 | 12 | 0.4724 | 1 | 0.039 | 2130 | 4850 | 0.148 |
| 1302 | 1302K | 15 | 0.5906 | 42 | 1.6535 | 13 | 0.5118 | 1.5 | 0.059 | 2150 | 5150 | 0.207 |
| 1303 | 1303K | 17 | 0.6693 | 47 | 1.8504 | 14 | 0.5512 | 1.5 | 0.059 | 2820 | 7150 | 0.287 |
| 1304 | 1304K | 20 | 0.7874 | 52 | 2.0472 | 15 | 0.5906 | 2 | 0.079 | 2790 | 7500 | 0.359 |
| 1305 | 1305K | 25 | 0.9843 | 62 | 2.4409 | 17 | 0.6693 | 2 | 0.079 | 4050 | 1130 | 0.567 |
| 1306 | 1306K | 30 | 1.1811 | 72 | 2.8346 | 19 | 0.748 | 2 | 0.079 | 4800 | 1420 | 0.853 |
| 1307 | 1307K | 35 | 1.378 | 80 | 3.1496 | 21 | 0.8268 | 2.5 | 0.098 | 5650 | 1770 | 1.12 |
| 1308 | 1308K | 40 | 1.5748 | 90 | 3.5433 | 23 | 0.9055 | 2.5 | 0.098 | 6650 | 2180 | 1.58 |
| 1309 | 1309K | 45 | 1.7717 | 100 | 3.937 | 25 | 0.9843 | 2.5 | 0.098 | 8550 | 2860 | 2.11 |
| 1310 | 1310K | 50 | 1.9685 | 110 | 4.3307 | 27 | 1.063 | 3 | 0.118 | 9750 | 3150 | 2.67 |
| 1311 | 1311K | 55 | 2.1654 | 120 | 4.7244 | 29 | 1.1417 | 3 | 0.118 | 11600 | 4000 | 3.48 |
| 1312 | 1312K | 60 | 2.3622 | 130 | 5.1181 | 31 | 1.2205 | 3.5 | 0.138 | 12900 | 4700 | 4.32 |
| 1313 | 1313K | 65 | 2.5591 | 140 | 5.5118 | 33 | 1.2992 | 3.5 | 0.138 | 13900 | 5150 | 5.4 |
| 1314 | 1314K | 70 | 2.7559 | 150 | 5.9055 | 35 | 1.378 | 3.5 | 0.138 | 16700 | 6250 | 6.6 |
| 1315 | 1315K | 75 | 2.9528 | 160 | 6.2992 | 37 | 1.4567 | 3.5 | 0.138 | 17800 | 6750 | 7.85 |
| 1316 | 1316K | 80 | 3.1496 | 170 | 6.6929 | 39 | 1.5354 | 3.5 | 0.138 | 19900 | 7450 | 9.22 |
| 1317 | 1317K | 85 | 3.3465 | 180 | 7.0866 | 41 | 1.6142 | 4 | 0.157 | 22000 | 8500 | 11 |
| 1318 | 1318K | 90 | 3.5433 | 190 | 7.4803 | 43 | 1.6929 | 4 | 0.157 | 26100 | 10000 | 12.8 |
| 1319 | 1319K | 95 | 3.7402 | 200 | 7.874 | 45 | 1.7717 | 4 | 0.157 | 29600 | 11400 | 14.7 |
| 1320 | 1320K | 100 | 3.937 | 215 | 8.4646 | 47 | 1.8504 | 4 | 0.157 | 32000 | 12900 | 18.3 |
