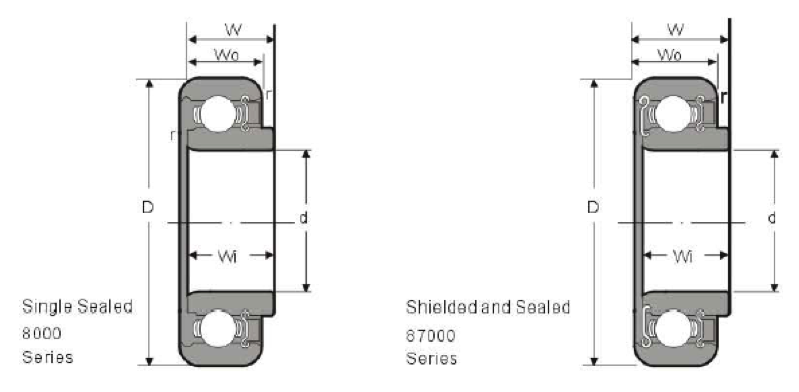

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | W | Wo | Wi | mm | inch | Dynamic Cr | Static Cor | ||||||
| mm | inch | mm | inch | mm | inch | |||||||||||
| 8035 | 87035 | 5 | .1969 | 19 | .7480 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 524 | 198 | 0.023 |
| 8036 | 87036 | 6 | .2362 | 19 | .7480 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 524 | 198 | 0.025 |
| 8006 | 87006 | 6 | .2362 | 24 | 9449 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 747 | 314 | 0.048 |
| 8037 | 87037 | 7 | .2756 | 22 | .8661 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 740 | 306 | 0.039 |
| 8007 | 87007 | 7 | .2756 | 24 | .9449 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 747 | 317 | 0.047 |
| 8038 | 87038 | 8 | .3150 | 22 | .8661 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 740 | 306 | 0.038 |
| 8008 | 87008 | 8 | .3150 | 24 | .9449 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.3 | 0.12 | 747 | 317 | 0.044 |
| 8039 | 87039 | 9 | .3543 | 26 | 1.0236 | 10.319 | .4063 | 8 | .3150 | 9.804 | .3860 | 0.6 | 0.25 | 1025 | 438 | 0.053 |
| 8009 | 87009 | 9 | .3543 | 30 | 1.1811 | 12.700 | .5000 | 9 | .3543 | 12.192 | .4800 | 0.6 | 0.25 | 1047 | 465 | 0.095 |
| 8500 | 87500 | 10 | .3937 | 30 | 1.1811 | 12.700 | .5000 | 9 | .3543 | 12.192 | .4800 | 0.6 | 0.25 | 1047 | 465 | 0.077 |
| 8011 | 87011 | 11 | .4331 | 32 | 1.2598 | 12.700 | .5000 | 10 | .3937 | 12.192 | .4800 | 0.6 | 0.25 | 1375 | 626 | 0.101 |
| 8501 | 87501 | 12 | .4724 | 32 | 1.2598 | 12.700 | .5000 | 10 | .3937 | 12.192 | .4800 | 0.6 | 0.25 | 1375 | 626 | 0.097 |
| 8013 | 87013 | 13 | .5118 | 32 | 1.2598 | 12.700 | .5000 | 10 | .3937 | 12.192 | .4800 | 0.6 | 0.25 | 1375 | 266 | 0.093 |
| 8014 | 87014 | 14 | .5512 | 35 | 1.3780 | 12.700 | .5000 | 11 | .4331 | 12.192 | .4800 | 0.6 | 0.25 | 1525 | 747 | 0.115 |
| 8502 | 87052 | 15 | .5906 | 35 | 1.3780 | 12.700 | .5000 | 11 | .4331 | 12.192 | .4800 | 0.6 | 0.25 | 1525 | 747 | 0.108 |
| 8016 | 87016 | 16 | .6299 | 35 | 1.3780 | 12.700 | .5000 | 11 | .4331 | 12.192 | .4800 | 0.6 | 0.25 | 1525 | 747 | 0.105 |
| 8602 | 87602 | 15 | .5906 | 42 | 1.6535 | 15 | .5906 | 13 | .5118 | 14 | .5512 | 1.0 | 0.40 | 1940 | 976 | 0.193 |
| 8503 | 87503 | 17 | .6693 | 40 | 1.5748 | 14.288 | .5625 | 12 | .4724 | 13.665 | .5380 | 0.6 | 0.25 | 1940 | 976 | 0.154 |
| 8603 | 87603 | 17 | .6693 | 47 | 1.8504 | 16 | .6299 | 14 | .5512 | 15 | .5906 | 1.0 | 0.40 | 2885 | 1494 | 0.257 |
| 8504 | 87504 | 20 | .7874 | 47 | 1.8504 | 15.875 | .6250 | 14 | .5512 | 15.240 | .6000 | 1.0 | 0.40 | 2885 | 1494 | 0.237 |
| 8604 | 87604 | 20 | .7874 | 52 | 2.0472 | 19 | .7480 | 15 | .5906 | 18 | .7080 | 1.0 | 0.40 | 3150 | 1785 | 0.352 |
| 8505 | 87505 | 25 | .9843 | 52 | 2.0472 | 15.875 | .6250 | 15 | .5906 | 15.240 | .6000 | 1.0 | 0.40 | 3150 | 1785 | 0.292 |
| 8605 | 87605 | 25 | .9843 | 62 | 2.4409 | 21 | .8268 | 17 | .6693 | 21 | .8268 | 1.0 | 0.40 | 3150 | 1785 | 0.600 |
| 8026 | 87026 | 26 | 1.0236 | 52 | 2.0472 | 15.875 | .6250 | 15 | .5906 | 15.240 | .6000 | 1.0 | 0.40 | 3150 | 1785 | 0.282 |
| 8506 | 87506 | 30 | 1.1811 | 62 | 2.4409 | 20 | .7874 | 16 | .6299 | 19 | .7480 | 1.0 | 0.40 | 1970 | 1140 | 0.506 |
| 8606 | 87606 | 30 | 1.1811 | 72 | 2.8346 | 23 | .9055 | 19 | .7480 | 23 | .9055 | 1.0 | 0.40 | 1970 | 1140 | 0.890 |
| 8507 | 87507 | 35 | 1.3780 | 72 | 2.8346 | 21 | .8268 | 17 | .6693 | 20 | .7874 | 1.0 | 0.40 | 2120 | 1330 | 0.708 |
| 8607 | 87607 | 35 | 1.3780 | 80 | 3.1496 | 25 | .9843 | 21 | .8268 | 25 | .9843 | 1.5 | 0.60 | 2120 | 1330 | 1.120 |
| 8508 | 87508 | 40 | 1.5748 | 80 | 3.1496 | 24 | .9449 | 21 | .8268 | 24 | .9449 | 1.0 | 0.40 | 2960 | 1820 | 1.070 |
| 8608 | 87608 | 40 | 1.5748 | 90 | 3.5433 | 27 | 1.0630 | 23 | .9055 | 27 | 1.0630 | 1.5 | 0.60 | 2960 | 1820 | 1.560 |
| 8509 | 87509 | 45 | 1.7717 | 85 | 3.3465 | 24 | .9449 | 21 | .8268 | 24 | .9449 | 1.0 | 0.40 | 3300 | 2050 | 1.200 |
| 8609 | 87609 | 45 | 1.7717 | 100 | 3.9370 | 30 | 1.1811 | 25 | .9843 | 30 | 1.1811 | 1.5 | 0.60 | 3300 | 2050 | 2.010 |
| 8510 | 87510 | 50 | 1.9685 | 90 | 3.5433 | 26 | 1.0263 | 22 | .8661 | 26 | 1.0236 | 1.0 | 0.40 | 3560 | 2350 | 1.300 |
| 8511 | 87511 | 55 | 2.1654 | 100 | 3.9370 | 27 | 1.0630 | 23 | .9055 | 27 | 1.0630 | 1.5 | 0.60 | 4390 | 2970 | 1.640 |
| 8512 | 87512 | 60 | 2.3622 | 110 | 4.3307 | 29 | 1.1420 | 25 | .9840 | 29 | 1.1420 | 1.5 | 0.60 | 5900 | 3070 | 2.110 |
