| 3" | 6" | 12" |
|---|---|---|
|

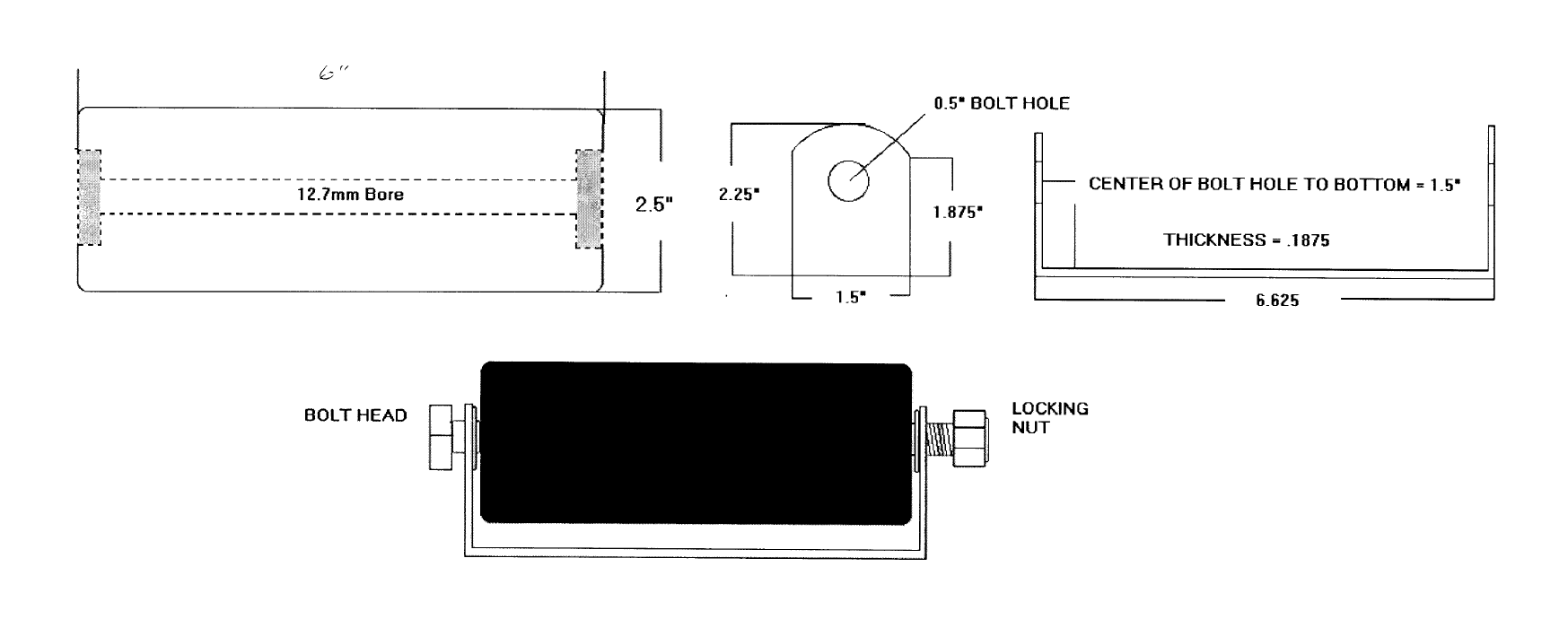

SHADED(RECESSED) AREA WILL HOLD A 6202-8 2RS BEARING WITH THE FOLLOWING DIMENSIONS: O.D.= 35mm, W= 11mm, Bore Size= 12.7mm EACH ROLLER/BRACKET ASSEMBLY COMES WITH ONE l/2-13x4.5" BOLT (LAST 1.5" OF BOLT BEING THREADED) TWO .875" O.D. - .5" I.D. - .03" THICK WASHERS AND ONE LOCK NUT WITH NYLON INSERT |
SHADED(RECESSED) AREA WILL HOLD A 6202-8 2RS BEARING WITH THE FOLLOWING DIMENSIONS: O.D.= 35mm, W= 11mm, Bore Size= 12.7mm EACH ROLLER/BRACKET ASSEMBLY COMES WITH ONE l/2-13x7" BOLT (LAST 1.5" OF BOLT BEING THREADED) TWO 1" O.D. - .525" I.D. - .1" THICK WASHERS, TWO .875" O.D. - .5" I.D. - .03" THINK WASHERS AND ONE LOCK NUT WITH NYLON INSERT |
SHADED(RECESSED) AREA WILL HOLD A 6202-8 2RS BEARING WITH THE FOLLOWING DIMENSIONS: O.D.= 35mm, W= 11mm, Bore Size= 12.7mm< EACH ROLLER/BRACKET ASSEMBLY COMES WITH ONE l/2-13x7" BOLT (LAST 1.5" OF BOLT BEING THREADED) TWO 1" O.D. - .525" I.D. - .1" THICK WASHERS, TWO .875" O.D. - .5" I.D. - .03" THINK WASHERS AND ONE LOCK NUT WITH NYLON INSERT |
