| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bolt size inch | Bearing Number | Housing No. | Weight | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

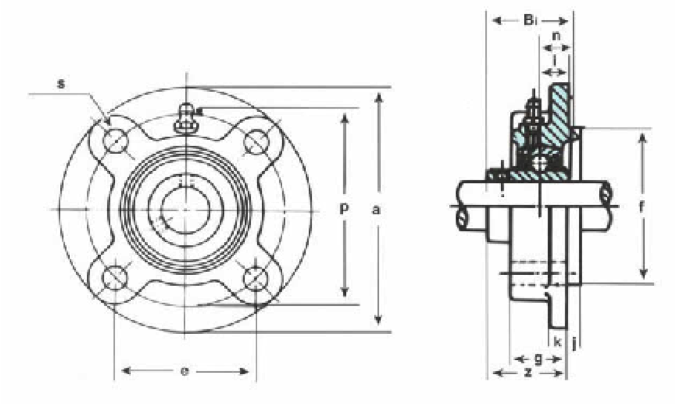

| a | p | e | i | s | j | k | g | f | z | Bi | n | kg | lbs. | |||||
| UCFC201-8 | 1/2 | 3-15/16 | 3-5/64 | 2-11/64 | 25/64 | 15/32 | 13/64 | 9/32 | 13/16 | 2.4409 | 1-1/81 | 1.2205 | 0.5000 | 3/8 | UC201-8 | FC204 | 0.84 | 1.85 |
| UCFC202-10 | 5/8 | UC202-10 | ||||||||||||||||
| UCFC204-12 | 3/4 | UC204-12 | ||||||||||||||||
| UCFC205-14 | 7/8 | 4-17/32 | 3-35/64 | 2-1/2 | 25/64 | 15/32 | 15/64 | 9/32 | 53/64 | 2.7559 | 1-5/32 | 1.3386 | 0.5630 | 3/8 | UC205-14 | FC205 | 1.00 | 2.21 |
| UCFC205-15 | 15/16 | UC205-15 | ||||||||||||||||
| UCFC205-16 | 1 | UC205-16 | ||||||||||||||||
| UCFC206-17 | 1-1/16 | 4-29/32 | 3-15/16 | 2-25/32 | 25/64 | 15/32 | 5/16 | 5/16 | 29/32 | 3.1496 | 1-9/32 | 1.5000 | 0.6260 | 3/8 | UC206-17 | FC206 | 1.46 | 3.22 |
| UCFC206-18 | 1-1/8 | UC206-18 | ||||||||||||||||
| UCFC206-19 | 1-3/16 | UC206-19 | ||||||||||||||||
| UCFC206-20 | 1-1/4 | UC206-20 | ||||||||||||||||
| UCFC207-20 | 1-1/4 | 5-5/16 | 4-23/64 | 3-1/16 | 7/16 | 35/64 | 5/16 | 11/32 | 1-1/32 | 3.5433 | 1-7/16 | 1.6890 | 0.6890 | 7/16 | UC207-20 | FC207 | 1.84 | 4.06 |
| UCFC207-21 | 1-5/16 | UC207-21 | ||||||||||||||||
| UCFC207-22 | 1-3/8 | UC207-22 | ||||||||||||||||
| UCFC207-23 | 1-7/16 | UC207-23 | ||||||||||||||||
| UCFC208-24 | 1-1/2 | 5-23/32 | 4-23/32 | 3-11/32 | 7/16 | 35/64 | 25/64 | 11/32 | 1-1/32 | 3.9370 | 1-5/8 | 1.9370 | 0.7480 | 7/16 | UC208-24 | FC208 | 2.28 | 5.03 |
| UCFC208-25 | 1-9/16 | UC208-25 | ||||||||||||||||
| UCFC209-26 | 1-5/8 | 6-5/16 | 5-13/64 | 3-43/64 | 25/64 | 5/8 | 15/32 | 9/16 | 1-1/32 | 4.1339 | 1-19/32 | 1.9370 | 0.7480 | 1/2 | UC209-26 | FC209 | 2.96 | 6.53 |
| UCFC209-27 | 1-11/16 | UC209-27 | ||||||||||||||||
| UCFC209-28 | 1-3/4 | UC209-28 | ||||||||||||||||
| UCFC210-30 | 1-7/8 | 6-1/2 | 5-7/16 | 3-27/32 | 25/64 | 5/8 | 15/32 | 9/16 | 1-7/64 | 4.3307 | 1-11/16 | 2.0315 | 0.7480 | 1/2 | UC210-30 | FC210 | 3.08 | 6.79 |
| UCFC210-31 | 1-15/16 | UC210-31 | ||||||||||||||||
| UCFC211-32 | 2 | 7-9/32 | 5-29/32 | 4-11/64 | 33/64 | 3/4 | 15/32 | 19/32 | 1-7/32 | 4.9213 | 1-13/16 | 2.1890 | 0.8740 | 5/8 | UC211-32 | FC211 | 3.88 | 8.56 |
| UCFC211-34 | 2-1/8 | UC211-34 | ||||||||||||||||
| UCFC211-35 | 2-3/16 | UC211-35 | ||||||||||||||||
| UCFC212-36 | 2-1/4 | 7-11/16 | 6-19/64 | 4-29/64 | 43/64 | 3/4 | 15/32 | 19/32 | 1-27/64 | 5.3150 | 2-7/32 | 2.5630 | 1.0000 | 5/8 | UC212-36 | FC212 | 5.42 | 12.0 |
| UCFC212-38 | 2-3/8 | UC212-38 | ||||||||||||||||
| UCFC212-39 | 2-7/16 | UC212-39 | ||||||||||||||||
| UCFC213-40 | 2-1/2 | 8-1/16 | 6-11/16 | 4-47/64 | 5/8 | 3/4 | 35/64 | 19/32 | 1-27/64 | 5.7087 | 2-3-16 | 2.5630 | 1.0000 | 5/8 | UC213-40 | FC213 | 5.88 | 13.0 |
