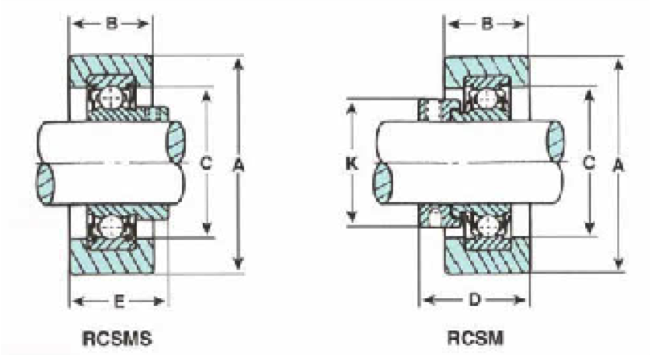

| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bearing No. | Rubber Ring No. | Weight lbs | ||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Locking Collar Type | Set Screw Type | A | B | C | D | E | K | RCSM | RCSMS | RCSM | RCSMS | ||
| RCSM201-8 | RCSMS201-8 | 1/2 | 2-17/32 | 1 | 1-3/8 | 1-3/8 | 1-9/64 | 1-1/8 | CSA201-8 | CSB201-8 | RC-3 | 0.44 | 0.35 |
| RCSN202-10 | RCSMS202-10 | 5/8 | CSA202-10 | CSB202-10 | |||||||||
| RCSM204-12 | RCSMS204-12 | 3/4 | 2-17/32 | 1 | 1-9/16 | 1-27/64 | 1-7/32 | 1-1/4 | CSA204-12 | CSB204-12 | RC-4 | 0.52 | 0.48 |
| RCSM205-14 | RCSMS205-14 | 7/8 | 2-17/32 | 1 | 1-25/32 | 1-27/64 | 1-9/32 | 1-1/2 | CSA205-14 | CSB205-14 | RC-5 | 0.58 | 0.53 |
| RCSM205-15 | RCSMS205-15 | 15/16 | CSA205-15 | CSB205-15 | |||||||||
| RCSM205-16 | RCSMS205-16 | 1 | CSA205-16 | CSB205-16 | |||||||||
| RCSM106-19 | 1-3/16 | 2-17/32 | 1 | 1-7/8 | 1-1/32 | 1-21/32 | CSA106-19 | RCS-6 | 0.55 | ||||
