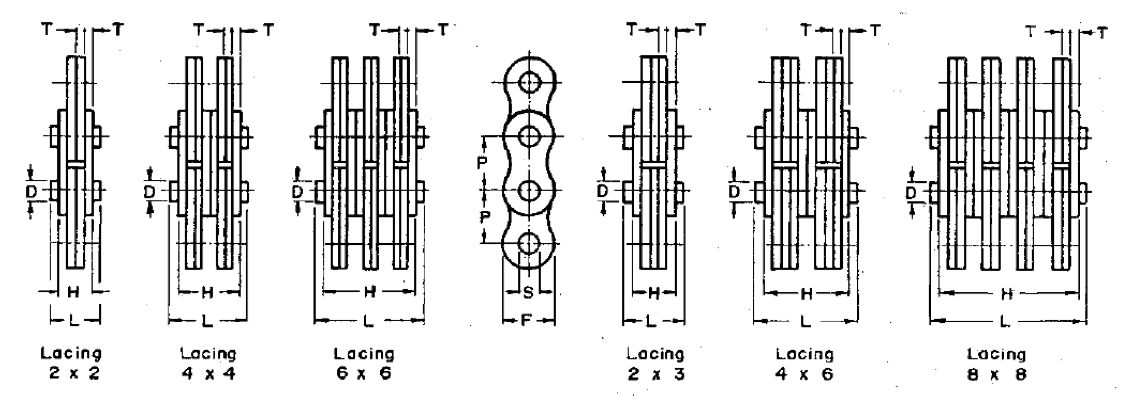

| TYPE A | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Chain No. | P | Lacing | H max. | L max. | D max. | S min. | F max. | T max. | Weight kg/m | Ave.Ulti Strength kg |
| AL-222 | 6.35 | 2/2 | 3.40 | 5.00 | 2.31 | 2.34 | 5.00 | 0.76 | 0.09 | 420 |
| AL-322 | 9.525 | 2/2 | 5.44 | 6.85 | 3.59 | 3.64 | 7.40 | 1.26 | 0.23 | 1050 |
| AL-422 | 2/2 | 6.28 | 8.10 | 0.36 | 1800 | |||||
| AL-444 | 12.7 | 4/4 | 12.16 | 14.40 | 3.97 | 4.01 | 10.40 | 1.47 | 0.68 | 3600 |
| AL-466 | 6/6 | 18.04 | 20.50 | 1.05 | 5400 | |||||
| AL-522 | 15.875 | 2/2 | 8.40 | 10.80 | 5.09 | 5.14 | 12.85 | 1.99 | 0.60 | 3000 |
| AL-523 | 2/3 | 10.50 | 12.90 | 0.73 | 4500 | |||||
| AL-544 | 4/4 | 16.80 | 19.40 | 1.16 | 6000 | |||||
| AL-566 | 6/6 | 25.20 | 28.00 | 1.73 | 9000 | |||||
| AL-622 | 19.05 | 2/2 | 9.80 | 12.50 | 5.95 | 6.02 | 14.85 | 2.36 | 0.80 | 4200 |
| AL-644 | 4/4 | 19.60 | 22.10 | 1.56 | 8400 | |||||
| AL-646 | 4/6 | 24.50 | 26.90 | 1.92 | 8400 | |||||
| AL-666 | 6/6 | 29.40 | 31.80 | 2.32 | 12600 | |||||
| AL-822 | 25.4 | 2/2 | 13.36 | 16.40 | 7.93 | 7.98 | 19.86 | 3.15 | 1.36 | 7100 |
| AL-844 | 4/4 | 26.72 | 29.90 | 2.69 | 14200 | |||||
| AL-866 | 6/6 | 40.08 | 42.80 | 4.02 | 21600 | |||||
| AL-888 | 8/8 | 53.44 | 56.50 | 5.38 | 28800 | |||||
| AL-1044 | 31.75 | 4/4 | 33.00 | 37.20 | 9.53 | 9.61 | 26.00 | 3.97 | 5.36 | 23000 |
| AL-1066 | 6/6 | 49.50 | 53.20 | 8.03 | 34500 | |||||
| AL-1088 | 8/8 | 66.00 | 69.20 | 10.68 | 46000 | |||||
| AL-1244 | 38.1 | 4/4 | 39.44 | 44.20 | 11.11 | 11.22 | 29.70 | 4.74 | 6.45 | 29000 |
| AL-1266 | 6/6 | 59.16 | 63.20 | 9.62 | 44400 | |||||
| AL-1288 | 8/8 | 78.88 | 83.10 | 12.82 | 59200 |
