| Unit NO. | Shaft Dia. (Inch) | Dimensions(inch) | Bearing No. | Housing No. | Weight | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

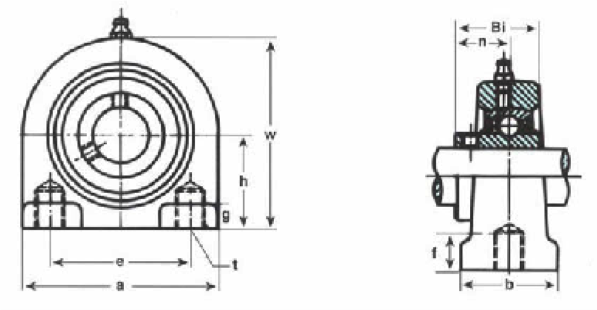

| h | a | e | b | g | w | f | t | Bi | n | kg | lbs. | ||||
| UCTB201-8 | 1/2 | UC201-8 | |||||||||||||
| UCTB202-10 | 5/8 | 1-5/16 | 2-7/8 | 2 | 1-1/2 | 7/16 | 2-9/16 | 1/2 | 3/8-16 | 1.220 | 0.500 | UC202-10 | TB204 | 0.70 | 1.54 |
| UCTB204-12 | 3/4 | UC204-12 | |||||||||||||
| UCTB205-14 | 7/8 | UC205-14 | |||||||||||||
| UCTB205-15 | 15/16 | 1-7/16 | 3 | 2 | 1-1/2 | 15/32 | 2-13/16 | 1/2 | 1/8-16 | 1.339 | 0.563 | UC205-15 | TB205 | 0.81 | 1.79 |
| UCTB205-16 | 1 | UC205-16 | |||||||||||||
| UCTB206-17 | 1-1/16 | 1-11/16 | 4 | 3 | 1-1/2 | 15/32 | 3-3/8 | 5/8 | 7/16-14 | 1.500 | 0.626 | UC206-17 | TB206 | 1.25 | 2.76 |
| UCTB206-18 | 1-1/8 | UC206-18 | |||||||||||||
| UCTB206-19 | 1-3/16 | UC206-19 | |||||||||||||
| UCTB206-20 | 1-1/4 | UC206-20 | |||||||||||||
| UCTB207-20 | 1-1/4 | 1-7/8 | 4-1/4 | 3-1/4 | 1-7/8 | 1/2 | 3-3/4 | 3/4 | 1/2-13 | 1.689 | 0.689 | UC207-20 | TB207 | 1.70 | 3.75 |
| UCTB207-21 | 1-5/16 | UC207-21 | |||||||||||||
| UCTB207-22 | 1-3/8 | UC207-22 | |||||||||||||
| UCTB207-23 | 1-7/16 | UC207-23 | |||||||||||||
| UCTB208-24 | 1-1/2 | 1-15/16 | 4-5/8 | 3-1/2 | 1-7/8 | 1/2 | 3-15/16 | 3/4 | 1/2-13 | 1.937 | 0.748 | UC208-24 | TB208 | 2.00 | 4.41 |
| UCTB208-25 | 1-9/16 | UC208-25 | |||||||||||||
| UCTB209-26 | 1-5/8 | UC209-26 | |||||||||||||
| UCTB209-27 | 1-11/16 | 2-1/8 | 5 | 3-3/4 | 2 | 1/2 | 4-1/4 | 3/4 | 1/2-13 | 1.937 | 0.748 | UC209-27 | TB209 | 2.30 | 5.07 |
| UCTB209-28 | 1-3/4 | UC209-28 | |||||||||||||
| UCTB210-30 | 1-7/8 | UC210-30 | |||||||||||||
| UCTB210-31 | 1-15/16 | 2-1/4 | 5-1/2 | 4 | 2 | 9/16 | 4-5/8 | 7/8 | 5/8-11 | 2.032 | 0.748 | UC210-31 | TB210 | 2.90 | 6.39 |
| UCTB210-32 | 2 | UC210-32 | |||||||||||||
