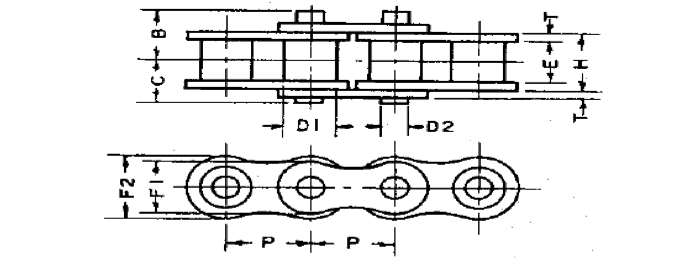

| SINGLE STRAND | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T1 | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| 25NP | 1/4"x1/8" | 6.35x3.18 | 4.80 | 4.8 | 3.8 | 5.00 | 5.80 | 3.30 | 2.30 | 0.75 | 0.14 | 420 |
| 35NP | 3/8"x3/16" | 9.525x4.80 | 7.46 | 7.0 | 5.8 | 7.40 | 8.80 | 5.08 | 3.58 | 1.25 | 0.33 | 1050 |
| 41NP | 1/2"x1/4" | 12.7x6.40 | 9.06 | 7.8 | 6.6 | 8.30 | 9.80 | 7.77 | 3.58 | 1.25 | 0.41 | 1250 |
| 40NP | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 0.63 | 1800 |
| 50NP | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 1.01 | 3000 |
| 60NP | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.93 | 17.28 | 11.91 | 5.94 | 2.40 | 1.44 | 4200 |
| 80NP | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 15.87 | 7.92 | 3.14 | 2.40 | 7400 |
| 100NP | 1-1/4"x3/4" | 31.75x19.05 | 27.45 | 22.9 | 19.7 | 26.08 | 30.24 | 19.05 | 9.52 | 3.96 | 3.94 | 11500 |

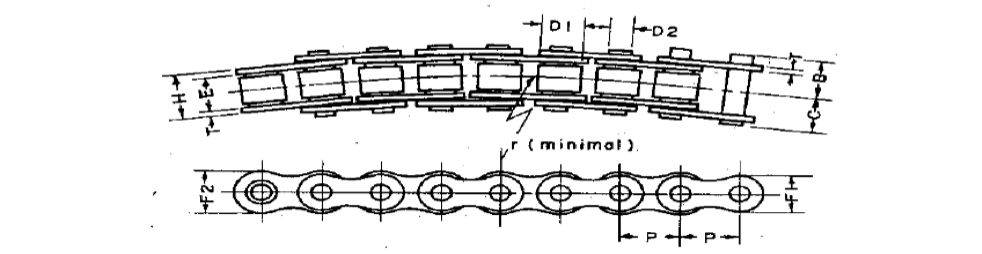

| SIDE BOW ROLLER CHAIN | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | r | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | ||||||||||||
| 35SB | 3/8"x3/16" | 9.525x4.80 | 7.46 | 7.2 | 6.0 | 7.40 | 8.80 | 5.08 | 3.58 | 254.0 | 1.25 | 0.33 | 1050 |
| 40SB | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.3 | 8.3 | 10.40 | 11.75 | 7.92 | 3.96 | 355.6 | 1.5 | 0.63 | 1800 |
| 50SB | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.8 | 10.3 | 12.85 | 14.70 | 10.16 | 5.08 | 406.4 | 1.96 | 1.01 | 3000 |
| 60SB | 3/4"x1/2" | 19.05x12.70 | 17.75 | 14.2 | 12.8 | 14.93 | 17.28 | 11.91 | 5.94 | 508.0 | 2.4 | 1.44 | 4200 |
| 80SB | 1"x5/8" | 25.4x15.88 | 22.60 | 18.8 | 16.5 | 20.00 | 23.24 | 15.87 | 7.92 | 609.6 | 3.14 | 2.4 | 7400 |

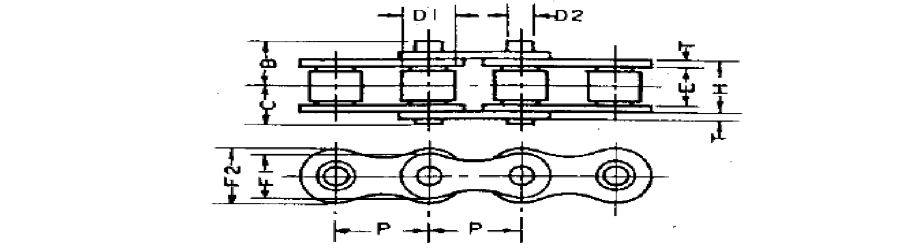

| SELF LUBE ROLLER CHAIN | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| ANSI Chain No. | PxE | H | B | C | F1 | F2 | D1 | D2 | T | Weight kg/m | Ave. Ulti. Strength kg | |
| inch | mm | |||||||||||
| 40SL | 1/2"x5/16" | 12.7x7.95 | 11.17 | 9.1 | 8.1 | 10.40 | 11.75 | 7.92 | 3.96 | 1.50 | 0.58 | 1350 |
| 50SL | 5/8"x3/8" | 15.875x9.53 | 13.84 | 11.5 | 10.0 | 12.85 | 14.70 | 10.16 | 5.08 | 1.96 | 0.95 | 2170 |
| 60SL | 3/4"x1/2" | 19.05x12.70 | 17.75 | 13.9 | 12.5 | 14.80 | 17.28 | 11.91 | 5.94 | 2.40 | 1.36 | 2800 |
| 80SL | 1"x5/8" | 25.4x15.88 | 22.60 | 18.4 | 16.1 | 20.00 | 23.24 | 15.87 | 7.92 | 3.14 | 2.35 | 5200 |
