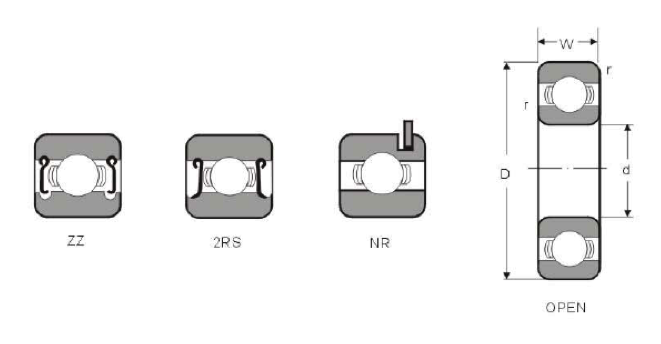

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | ||||
|---|---|---|---|---|---|---|---|---|---|---|
| fraction | inch | fraction | inch | fraction | inch | inch | Dynamic Cr | Static Cor | ||
| 1601 | 3/16 | .1875 | 11/16 | .6875 | 1/4* | .2500* | 0.012 | 350 | 167 | .012 |
| 1602 | 1/4 | .2500 | 11/16 | .6875 | 1/4* | .2500* | 0.012 | 350 | 167 | .013 |
| 1603 | 5/16 | .3125 | 7/8 | .8750 | 9/32** | .2812** | 0.012 | 686 | 310 | .023 |
| 1604 | 3/8 | .3750 | 7/8 | .8750 | 5/16 | .2812** | 0.015 | 686 | 310 | .021 |
| 1605 | 5/16 | .3125 | 29/32 | .9062 | 5/16 | .3125 | 0.012 | 725 | 318 | .032 |
| 1606 | 3/8 | .3750 | 29/32 | .9062 | 5/16 | .3125 | 0.015 | 725 | 318 | .030 |
| 1607 | 7/16 | .4375 | 29/32 | .9062 | 3/8 | .3125 | 0.015 | 725 | 318 | .035 |
| 1614 | 3/8 | .3750 | 1-1/8 | 1.1250 | 3/8 | .3750 | 0.025 | 885 | 501 | .077 |
| 1615 | 7/16 | .4375 | 1-1/8 | 1.1250 | 3/8 | .3750 | 0.025 | 885 | 501 | .071 |
| 1616 | 1/2 | .5000 | 1-1/8 | 1.1250 | 7/16 | .3750 | 0.025 | 885 | 501 | .066 |
| 1620 | 7/16 | .4375 | 1-3/8 | 1.3750 | 7/16 | .4375 | 0.025 | 1038 | 626 | .105 |
| 1621 | 1/2 | .5000 | 1-3/8 | 1.3750 | 7/16 | .4375 | 0.025 | 1038 | 626 | .106 |
| 1622 | 9/16 | .5625 | 1-3/8 | 1.3750 | 7/16 | .4375 | 0.025 | 1038 | 626 | .101 |
| 1623 | 5/8 | .6250 | 1-3/8 | 1.3750 | 1/2 | .4375 | 0.025 | 1038 | 626 | .088 |
| 1628 | 5/8 | .6250 | 1-5/8 | 1.6250 | 1/2 | .5000 | 0.025 | 1848 | 1055 | .159 |
| 1630 | 3/4 | .7500 | 1-5/8 | 1.6250 | 1/2 | .5000 | 0.025 | 1848 | 1055 | .143 |
| 1633 | 5/8 | .6250 | 1-3/4 | 1.7500 | 1/2 | .5000 | 0.025 | 1848 | 1055 | .203 |
| 1635 | 3/4 | .7500 | 1-3/4 | 1.7500 | 9/16 | .5000 | 0.025 | 1848 | 1055 | .187 |
| 1638 | 3/4 | .7500 | 2 | 2.0000 | 9/16 | .5625 | 0.035 | 1958 | 1165 | .265 |
| 1640 | 7/8 | .8750 | 2 | 2.0000 | 9/16 | .5625 | 0.035 | 1958 | 1165 | .247 |
| 1641 | 1 | .1.0000 | 2 | 2.0000 | 9/16 | .5625 | 0.035 | 1958 | 1165 | .221 |
| 1652 | 1-1/8 | 1.1250 | 2-1/2 | 2.5000 | 5/8 | .6250 | 0.035 | 2592 | 1735 | .463 |
| 1654 | 1-1/4 | 1.2500 | 2-1/2 | 2.5000 | 5/8 | .6250 | 0.035 | 2592 | 1735 | .419 |
| 1657 | 1-1/4 | 1.2500 | 2-9/16 | 2.5625 | 11/16 | .6875 | 0.035 | 3362 | 2244 | .474 |
| 1658 | 1-5/16 | 1.3125 | 2-9/16 | 2.5625 | 11/16 | .6875 | 0.035 | 3362 | 2244 | .441 |
