| for "A"(4L) and "B"(5L) v-belts | ||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

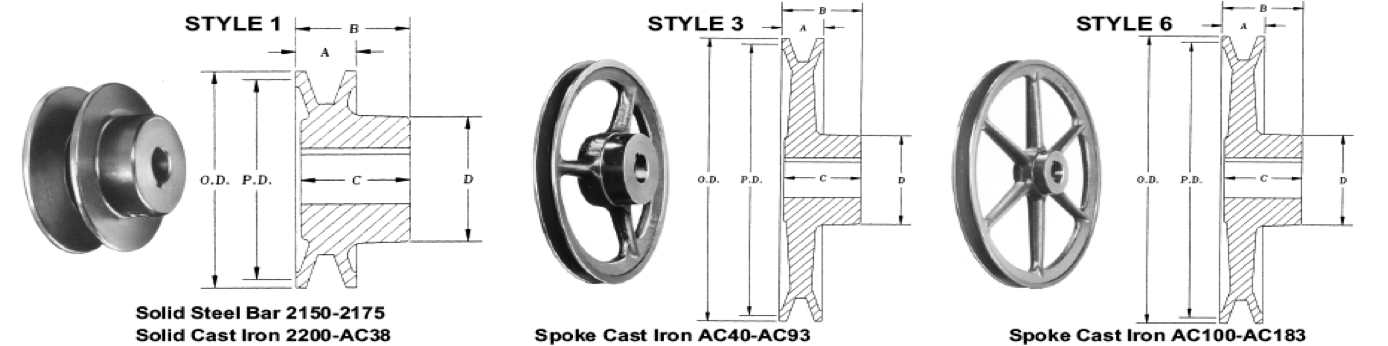

| DIAMETER | PART NUMBER | STYLE | STOCK BORES MARKED"X"x | MAX BORE INCHES | DIMENSIONx INCHES | APPROX.WT LBS. | ||||||||||||||
| P.D./O.D INCHES | D.D "A"BELT INCHES | D.D "O"BELT INCHES | 1/2 in | 5/8 in | 3/4 in | 7/8 in | 1 in | 1-1/8 in | 1-3/16 in | 1-1/4 in | 1-3/8 in | 1-7/16 in | A | B | C | D | ||||
| 1.5 | 1.3 | 2150 | 1 | x | x+ | 5/8 | 5/8 | 1-1/16 | 1-1/16 | 1-1/4 | 0.2 | |||||||||
| 1.75 | 1.5 | 2175 | 1 | x | x | x | 3/4 | 5/8 | 1-1/16 | 1-1/16 | 1-1/2 | 0.4 | ||||||||
| 2 | 1.7 | 2200 | 1 | x | x | x | x | 7/8 | 3/4 | 1-1/4 | 1-1/8 | 1-5/8 | 0.6 | |||||||
| 2.1 | 1.8 | 1.5 | 2210 | 1 | x | x | x | x | 7/8 | 3/4 | 1-1/4 | 1-1/8 | 1-5/8 | 0.6 | ||||||
| 2.25 | 2.0 | 1.7 | 2225 | 1 | x | x | x | x | x | 1 | 3/4 | 1-1/4 | 1-1/8 | 1-5/8 | 0.7 | |||||
| 2.4 | 2.1 | 1.8 | 2240 | 1 | x | x | x | x | x | 1 | 3/4 | 1-5/16 | 1-1/8 | 1-5/8 | 0.8 | |||||
| 2.5 | 2.2 | 1.9 | 2250 | 1 | x | x | x | x | x | 1 | 3/4 | 1-5/16 | 1-1/8 | 1-5/8 | 0.9 | |||||
| 2.6 | 2.3 | 2.0 | 2260 | 1 | x | x | x | x | x | 1 | 3/4 | 1-5/16 | 1-1/8 | 1-5/8 | 0.9 | |||||
| 2.75 | 2.5 | 2.2 | 2275 | 1 | x | x | x | x | x | 1 | 3/4 | 1-5/16 | 1-1/8 | 1-5/8 | 1 | |||||
| 3 | 2.7 | 2.4 | 2300 | 1 | x | x | x | x | x | 1 | 3/4 | 1-5/16 | 1-1/8 | 1-7/8 | 1.1 | |||||
| 3.05 | 2.8 | 2.5 | AC31 | 1 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-5/16 | 1-1/8 | 1-7/8 | 1.2 | ||||
| 3.25 | 3.0 | 2.7 | AC33 | 1 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-7/17 | 1-1/4 | 1-7/8 | 1.3 | ||||
| 3.45 | 3.2 | 2.9 | AC35 | 1 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-7/17 | 1-1/4 | 1-7/8 | 1.5 | ||||
| 3.75 | 3.5 | 3.2 | AC38 | 1 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-7/17 | 1-1/4 | 1-7/8 | 1.6 | ||||
| 4 | 3.7 | 3.4 | AC40 | 3 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-7/17 | 1-1/8 | 1-53/64 | 1.4 | ||||
| 4.25 | 4.0 | 3.7 | AC43 | 3 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-3/8 | 1-3/8 | 1-3/4 | 1.7 | ||||
| 4.45 | 4.2 | 3.9 | AC45 | 3 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-3/8 | 1-3/8 | 1-3/4 | 1.8 | ||||
| 4.75 | 4.5 | 4.2 | AC48 | 3 | x | x | x | x | x | x | 1-1/8 | 3/4 | 1-3/8 | 1-3/8 | 1-3/4 | 1.9 | ||||
| 5 | 4.7 | 4.4 | AC50 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-1/8 | 1-7/8 | 1.6 | ||
| 5.25 | 5.0 | 4.7 | AC53 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-3/8 | 1-7/8 | 2.1 | ||
| 5.45 | 5.2 | 4.9 | AC55 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-3/8 | 1-7/8 | 2.4 | ||
| 5.75 | 5.5 | 5.2 | AC58 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-1/8 | 1-7/8 | 2.3 | ||
| 6 | 5.7 | 5.4 | AC60 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-1/8 | 1-7/8 | 1.9 | ||
| 6.25 | 6.0 | 5.7 | AC63 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-3/8 | 1-7/8 | 2.1 | ||
| 6.45 | 6.2 | 5.9 | AC65 | 3 | x | x | x | x | x | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-3/8 | 1-7/8 | 2.7 | ||
| 6.75 | 6.5 | 6.2 | AC68 | 3 | x | x | x | 1-1/4 | 3/4 | 1-3/8 | 1-3/8 | 1-7/8 | 3.2 | |||||||
| 6.95 | 6.7 | 6.4 | AC70 | 3 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 3.5 |
| 7.25 | 7.0 | 6.7 | AC73 | 3 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 3.7 |
| 7.75 | 7.5 | 7.2 | AC78 | 3 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 3.8 | |
| 7.95 | 7.7 | 7.4 | AC80 | 3 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 3.9 |
| 8.25 | 8.0 | 7.7 | AC83 | 3 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 4.1 |
| 8.95 | 8.7 | 8.4 | AC90 | 3 | x | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 4.4 |
| 9.25 | 9 | 8.7 | AC93 | 3 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 4.7 | |
| 9.95 | 9.7 | 9.4 | AC100 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 5.6 | |
| 10.25 | 10 | 9.7 | AC103 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 5.7 | |
| 10.95 | 10.7 | 10.4 | AC110 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 5.9 | ||
| 11.25 | 11 | 10.7 | AC113 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 6.1 | |
| 11.95 | 11.7 | 11.4 | AC120 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 3/4 | 1-5/8 | 1-5/8 | 2-1/2 | 6.4 | |
| 12.25 | 12 | 11.7 | AC123 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-5/8 | 1-5/8 | 2-1/2 | 6.8 | ||
| 12.95 | 12.7 | 12.4 | AC130 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-5/8 | 1-5/8 | 2-1/2 | 7.3 | ||
| 13.25 | 13 | 12.7 | AC133 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-5/8 | 1-5/8 | 2-1/2 | 8 | |
| 13.95 | 13.7 | 13.4 | AC140 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-5/8 | 1-5/8 | 2-1/2 | 9.7 | |
| 14.25 | 14 | 13.7 | AC143 | 6 | x | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-5/8 | 1-5/8 | 2-1/2 | 10 | |
| 14.95 | 14.7 | 14.4 | AC150 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-3/4 | 1-3/4 | 2-1/2 | 10.4 | ||
| 15.25 | 15 | 14.7 | AC153 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-3/4 | 1-3/4 | 2-1/2 | 11 | ||
| 18.25 | 18 | 17.7 | AC183 | 6 | x | x | x | x | x | x | x | x | 1-1/2 | 7/8 | 1-3/4 | 1-3/4 | 2-1/2 | 13 | ||
