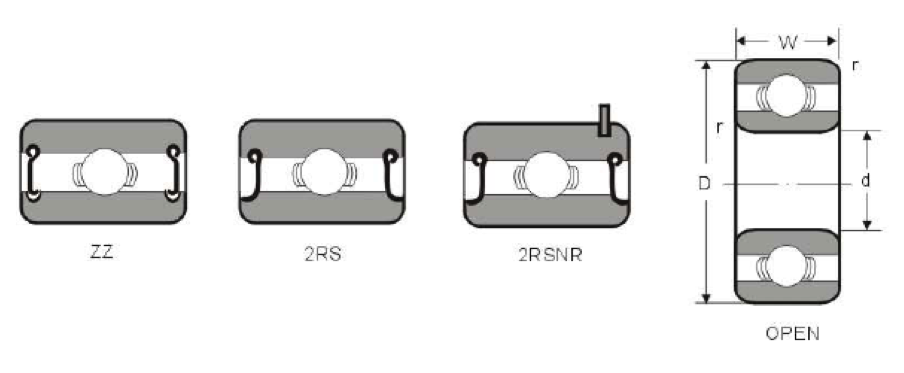

| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| mm | inch | mm | inch | mm | fraction | inch | mm | inch | Dynamic Cr | Static Cor | ||
| W6200 | 10 | 0.393 | 30 | 1.1811 | 14.3 | 9/16 | 0.5625 | 1.0 | .039 | 837 | 396 | 0.10 |
| W6201 | 12 | 0.4724 | 32 | 1.2598 | 15.9 | 5/8 | 0.6250 | 1.0 | .039 | 1102 | 617 | 0.12 |
| W6202 | 15 | 0.5906 | 35 | 1.3780 | 15.9 | 5/8 | 0.6250 | 1.0 | .039 | 1256 | 727 | 0.15 |
| W6203 | 17 | 0.6693 | 40 | 1.5748 | 17.5 | 11/16 | 10.6890 | 1.0 | .039 | 1565 | 903 | 0.22 |
| W6204 | 20 | 0.7874 | 47 | 1.8504 | 20.6 | 13/16 | 0.8110 | 1.5 | .059 | 2204 | 1388 | 0.33 |
| W6205 | 25 | 0.9843 | 52 | 2.0472 | 20.6 | 13/16 | 0.8110 | 1.5 | .059 | 2380 | 1543 | 0.39 |
| W6206 | 30 | 1.1811 | 62 | 2.4409 | 23.8 | 15/16 | 0.9370 | 1.5 | .059 | 3306 | 2204 | 0.62 |
| W6207 | 35 | 1.3780 | 72 | 2.8346 | 27.0 | 1-1/16 | 1.0630 | 2.0 | .079 | 4365 | 2865 | 0.99 |
| W6208 | 40 | 1.5748 | 80 | 3.1496 | 30.2 | 1.1890 | 1-3/16 | 2.0 | .079 | 4629 | 3196 | 1.38 |
| W6209 | 45 | 1.7717 | 85 | 3.3465 | 30.2 | 1-3/16 | 1.1890 | 2.0 | .079 | 5070 | 3527 | 1.47 |
| W6210 | 50 | 1.9687 | 90 | 3.5433 | 30.2 | 1-3/16 | 1.1890 | 2.0 | .079 | 5511 | 4078 | 1.69 |
| W6211 | 55 | 2.1654 | 100 | 3.9370 | 33.3 | 1-5/16 | 1.3125 | 2.5 | .098 | 8920 | 6520 | 2.04 |
| W6212 | 60 | 2.3622 | 110 | 4.3307 | 36.5 | 1-7/16 | 1.4375 | 2.5 | .098 | 11460 | 8205 | 2.80 |
| W6213 | 65 | 2.5591 | 120 | 4.7244 | 38.1 | 1-1/2 | 1.5000 | 1.5 | .059 | 14000 | 9890 | 3.48 |
| W6214 | 70 | 2.7559 | 125 | 4.9213 | 39.7 | 1-9/16 | 1.5625 | 1.5 | .059 | 14000 | 9890 | 3.84 |
| W6215 | 75 | 2.9528 | 130 | 5.1181 | 41.3 | 1-5/8 | 1.6250 | 1.5 | .059 | 15750 | 10895 | 4.19 |
| W6216 | 80 | 3.1496 | 140 | 5.5118 | 44.4 | 1-3/4 | 1.7500 | 2.0 | .079 | 17500 | 11900 | 5.27 |
| Bearing No. | Bore d | Outer Diameter D | Width W | Radius r | Basic Load Rating lbs | Weight lbs | ||||||
| mm | inch | mm | inch | mm | fraction | inch | mm | inch | Dynamic Cr | Static Cor | ||
| W6302 | 15 | 0.5906 | 42 | 1.6535 | 19.0 | 3/4 | 0.7500 | 1.5 | .059 | 1851 | 1102 | 0.34 |
| W6303 | 17 | 0.6693 | 47 | 1.8504 | 22.2 | 7/8 | 0.8750 | 1.5 | .059 | 2204 | 1278 | 0.42 |
| W6304 | 20 | 0.7874 | 52 | 2.0472 | 22.2 | 7/8 | 0.8750 | 2 | .079 | 2579 | 1587 | 0.46 |
| W6305 | 25 | 0.9843 | 62 | 2.4409 | 25.4 | 1 | 1.0000 | 2 | .079 | 3306 | 2204 | 0.77 |
| W6306 | 30 | 1.1811 | 72 | 2.8346 | 30.2 | 1-3/16 | 1.1890 | 2.5 | .098 | 4409 | 3020 | 1.21 |
| W6307 | 35 | 1.3780 | 80 | 3.1496 | 34.9 | 1-3/8 | 1.3740 | 2.5 | .098 | 5291 | 3637 | 1.56 |
| W6308 | 40 | 1.5748 | 90 | 3.5433 | 36.5 | 1-7/16 | 1.4370 | 2.5 | .098 | 6613 | 4067 | 2.22 |
| W6309 | 45 | 1.7717 | 100 | 3.9370 | 39.7 | 1-9/16 | 1.5630 | 2.5 | .098 | 8377 | 6172 | 2.88 |
| W6310 | 50 | 1.9687 | 110 | 4.3307 | 44.4 | 1-3/4 | 1.7480 | 3.0 | .118 | 13900 | 8540 | 3.75 |
| W6311 | 55 | 2.1654 | 120 | 4.7244 | 49.2 | 1-15/16 | 1.9375 | 3.0 | .118 | 17100 | 10100 | 5.12 |
| W6312 | 60 | 2.3622 | 130 | 5.1181 | 54.0 | 2-1/8 | 2.1250 | 3.5 | .138 | 18400 | 11700 | 6.50 |
| W6313 | 65 | 2.5591 | 140 | 5.5118 | 58.7 | 2-5/16 | 2.3125 | 3.5 | .138 | 20700 | 13500 | 8.17 |
| W6314 | 70 | 2.7559 | 150 | 5.9055 | 63.5 | 2-1/2 | 2.5000 | 3.5 | .138 | 23400 | 15300 | 10.50 |
| W6315 | 75 | 2.9528 | 160 | 6.2992 | 68.3 | 2-11/16 | 2.6875 | 3.5 | .138 | 27200 | 17500 | 12.10 |
| W6316 | 80 | 3.1496 | 170 | 6.6929 | 68.3 | 2-11/16 | 2.6875 | 3.5 | .138 | 29900 | 21400 | 13.40 |
